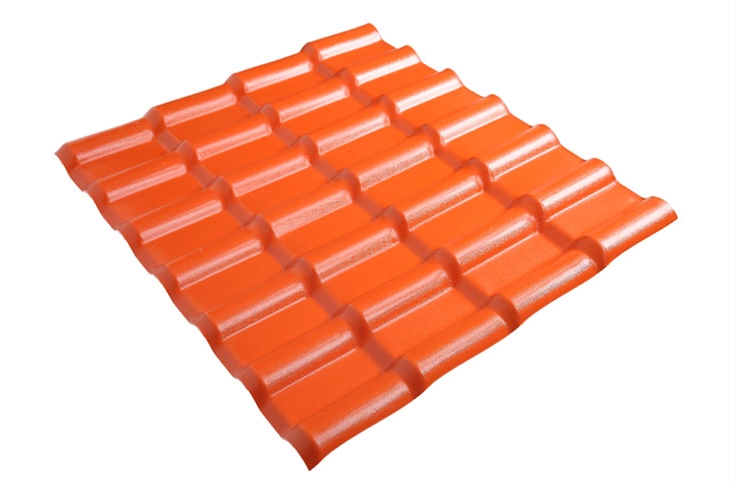

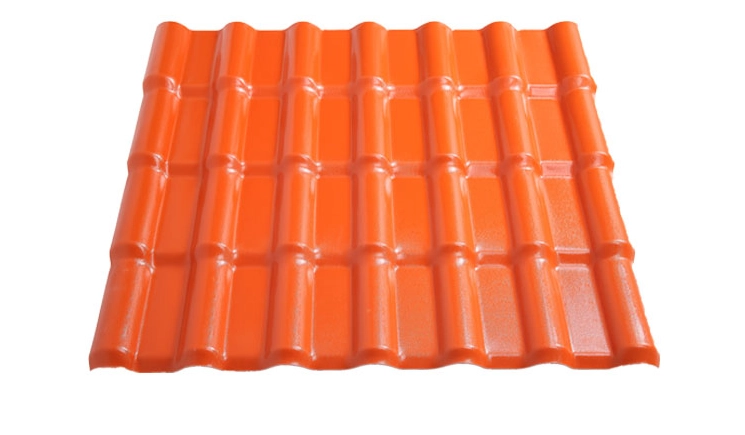

ZXC world-wide used durable ASA rooftile

  • Name:ZXC Resin roofing tile sheet with direct factory pricing
  • Size:1500*960mm
  • Thickness:2.3mm ~ 3.0mm
  • Color:customerized

1.A variety of raw materials by a certain percentage mixing, intohe hopper

2. The mixed raw materials are pref -ormed and heated to become flat tiles

3. Then through the mold pressure,lastic the molding, cooling, throughthe traction machine slowly introduced

4.To achieve the length of customerneeds cut off. after artificial out

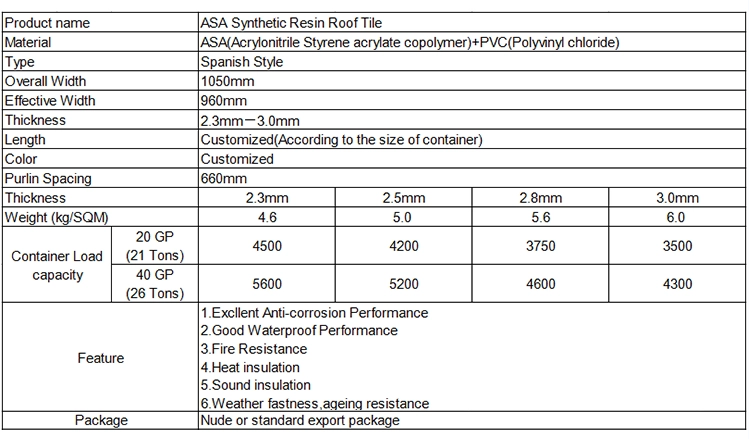

Product Name

Spanish Style ASA Roof Tile

Brand

ZXC

Place of Origin

Foshan city,Guangdong province,China(Mainland)

Material

Acrylonitrile Styrene acrylate copolymer,Polyvinyl chloride,

Calcium powder,other chemical materials

Guarantee

25 years

Certification

ISO9001 / SGS / CE

Minimum Order Quantity

100 square meter

Delivery Time

1x20GP for 6 days,1x40GP for 7 days

Supply Ability

We have 8 produce lines,about 13500 square meter every day

Payment Terms

T/T , firstly pay 30% deposit,before loading container pay rest of payment

L/C ,

Shipping

Full Container Load (FCL) Service,We do it by myself.

Less than Container Load (LCL) Service,We find our agents to do it.

Package

Pallet or PE bag

Port

Guangzhou / Shenzhen / Foshan

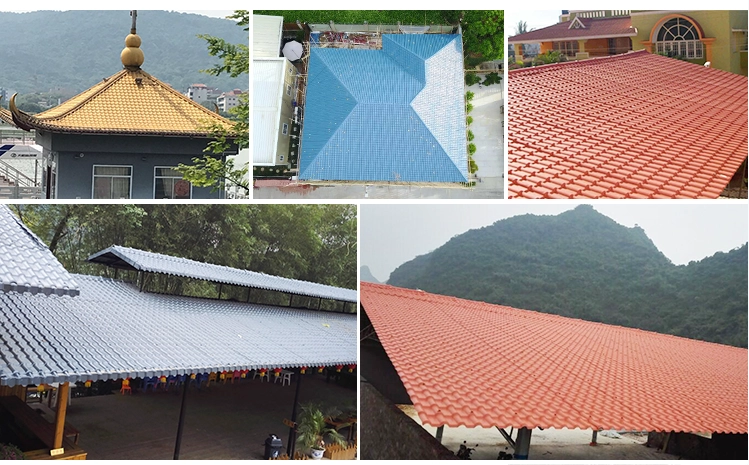

Application

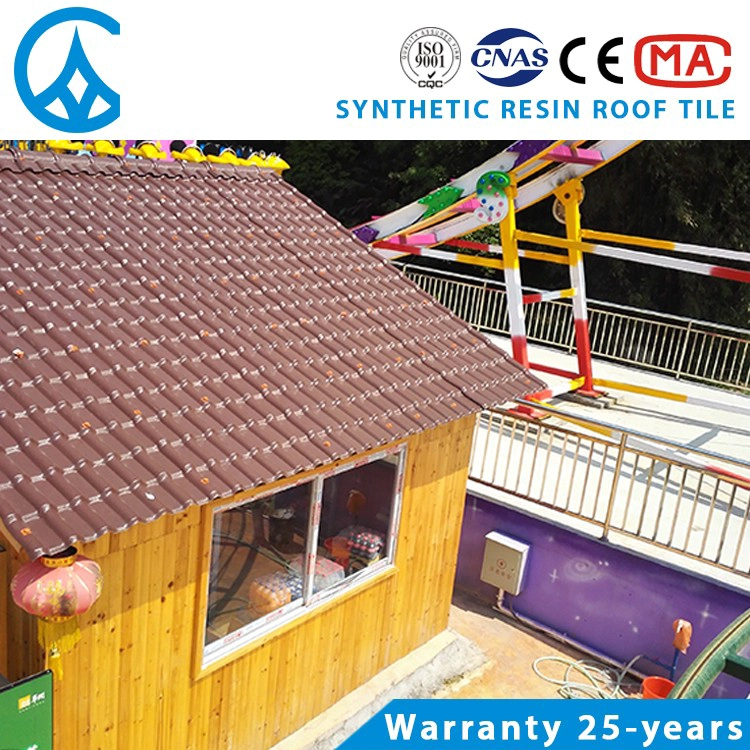

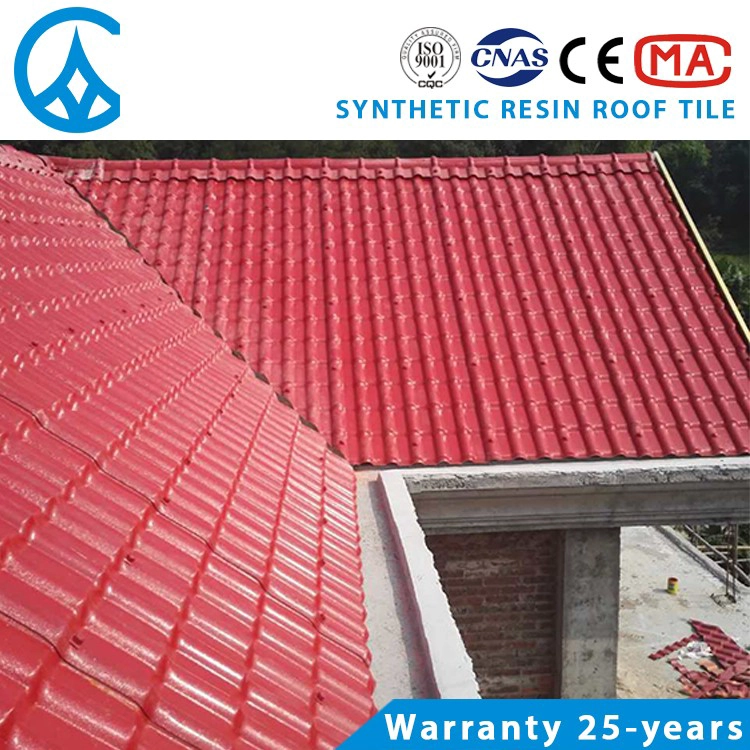

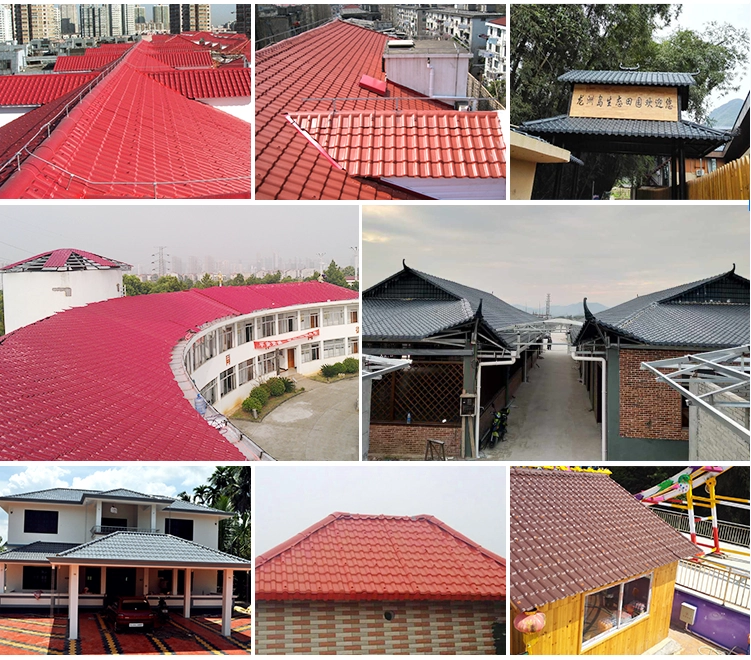

Villa roofing,House roofing,Garden,Grange,Container house,

Flat to Slope Project,Etc



Model Number

#1050-160-30

Type

Spanish Style

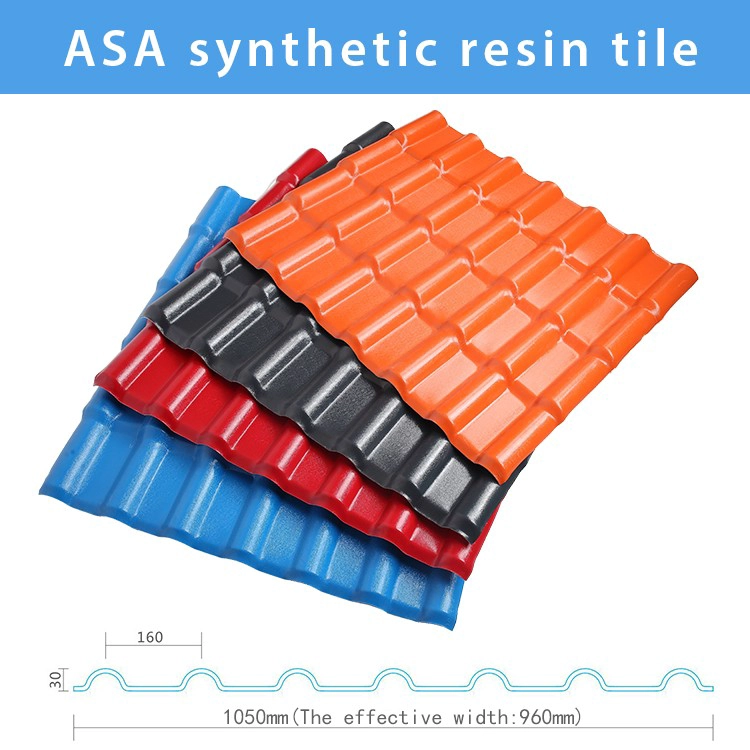

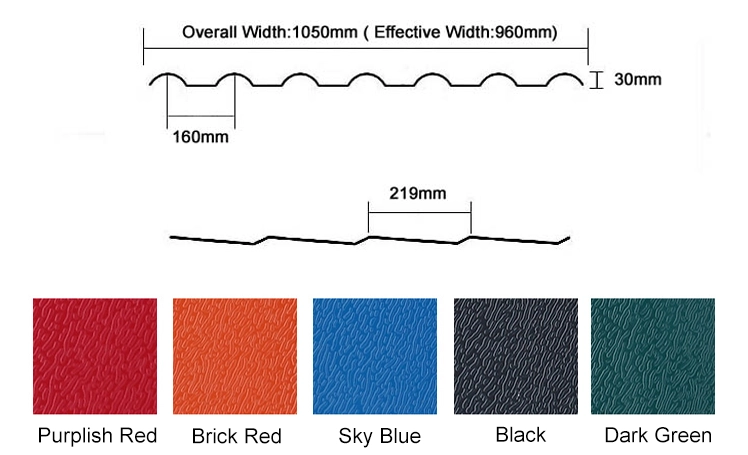

Overall Width

1050mm

Effective Width

960mm

Thickness

2.3mm / 2.5mm / 2.8mm / 3.0mm

Length

Must be a multiple of section

Color

Orange / Red / Grey / Sky blue / Dark green

Wave Spacing

160mm

Wave Height

30mm

Section Length

219mm

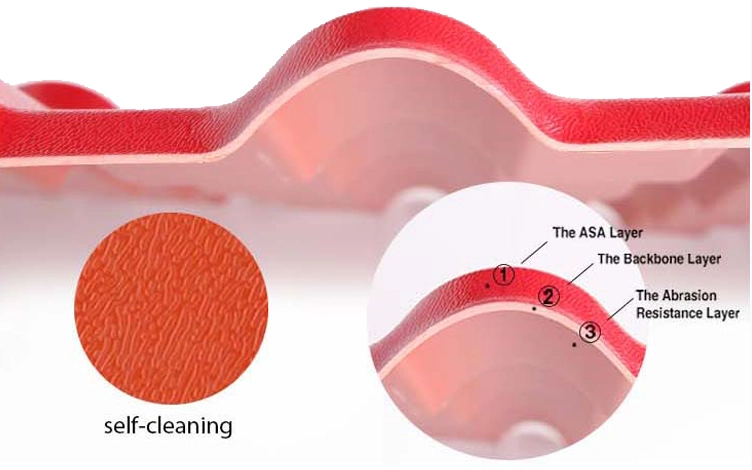

Structure

Surface:Imported ASA raw materials from the world's top 500 GE company,Super weather resistance, truly 10 years don,t have color fading.The standard is that the thickness of the surface reaches 0.15mm,We can reach 0.15-0.18mm.



Medium:The material is Polyvinyl chloride and Calcium powder,the proportion is 1:1.This is the best ratio after many trials.This ratio guarantees the strength and toughness of the product.



Bottom:The important material also is Polyvinyl chloride and Calcium powder,but add other chemical materials.We are make the same color as the surface color and white color.Gloss of products is best in the industry.



Feature

· Long-lasting Color (at least 10 years)

· The product features ultra durability in natural environment.Even under tough conditions of exposure to UV,high temperature and freezing coldness,it still keeps stable color.

· Excllent Anti-corrosion performance

· Synthetic Resin Tile can resist longterm acid ,alkali and salt corrosion ,etc.Tests have proved that there would be no chemical reaction after soaking in salt and alikali and various acid under 60% .It is ideal for application in areas where acid rain is common.

· Good Waterproofing Performance

· Synthetic Resin Tile selects highly weater-resistant resin,which is dense and absorbing no water,with no pore penetration problem.The product is 45% wider than traditional tiles with less roof contact,so synthetic resin,s waterproof performance has greatly increased than traditional tiles.

· Strong Fire Resistance

· Belonging flame retardant material,with fire resistance B1 as tested by national authoritative departments according to GBB8624-2006 standard.

· Excellent Heat Insulating Property

· The heat conductivity coefficient is 0.325w/m.k,about 1/300 of clay tile ,1/50 of cement tile,and 1/2000 of thick color steel tile.Therefore without condidering ading heat-preserving layer ,the heat insulation and heat preservation of synthetic resin tile can still be optimized.

· Good sound insulation

· Tests have proved that synthetic resin tiles have excellent noise absorption function when suffered heavy rains and strong winds.







*Are you manufacturer or trader?

*Yes, we are real manufacturer, there are many pictures in our company introduction .if you need other special product, we will do our best to help you, so we can build a long-term business relationship.



*Can I order the product with i want to profile?

*Of course you can, also we will produce the products according to your detail requests.



*Can you put my company's brand on your products?

*Yes,we are accept OEM&ODM service.But we need some information about your company.



*How to install the roofing sheet?

*Please contact our service staff, we have installation video for you.



*Can you provide samples for me to open the market and test quality?

*Yes,we can.We can provide free samples to you ,Could you pay the shipping cost?Please contact our service staff.



*What is your trade term?

* Payment: T/T 30% in advance, balance before shipment.

• Production Lead Time: Within 7 working days after 30% deposit

• FOB Shipping Port: Foshan,Guangzhou,Shenzhen
