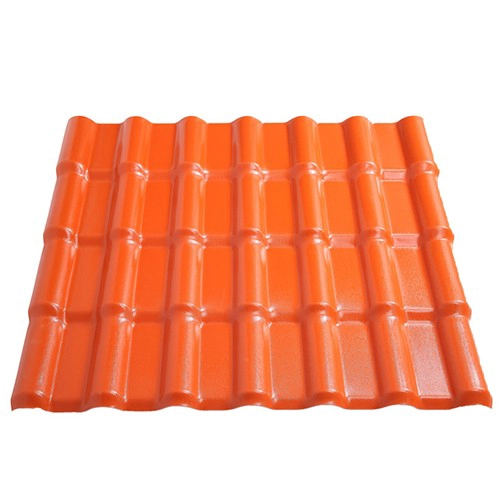

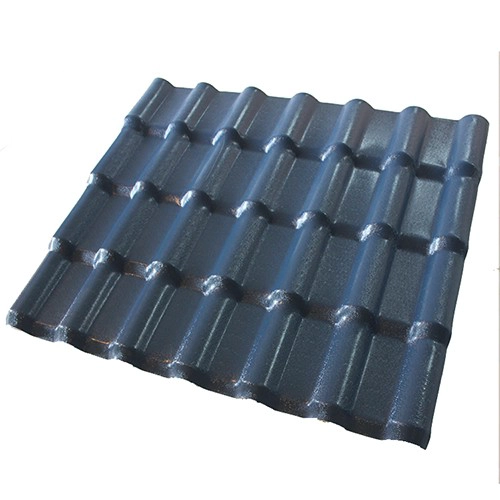

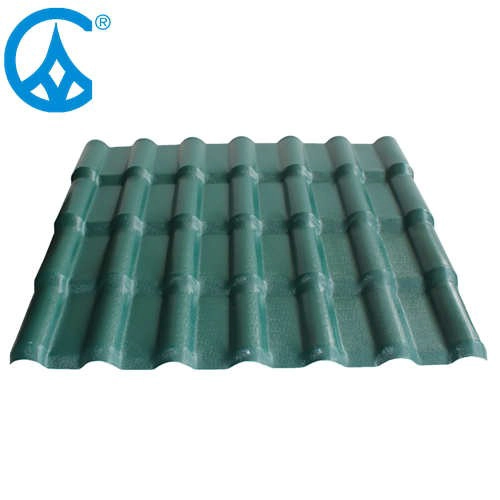

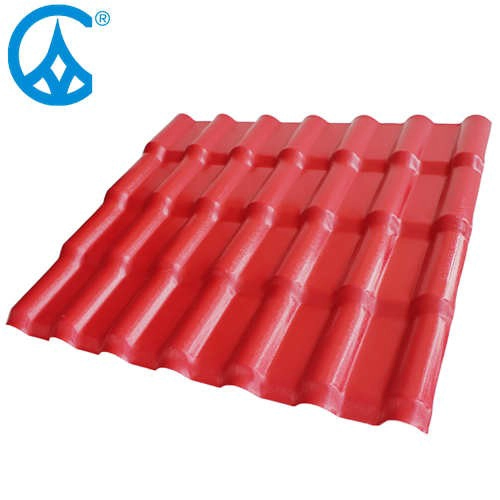

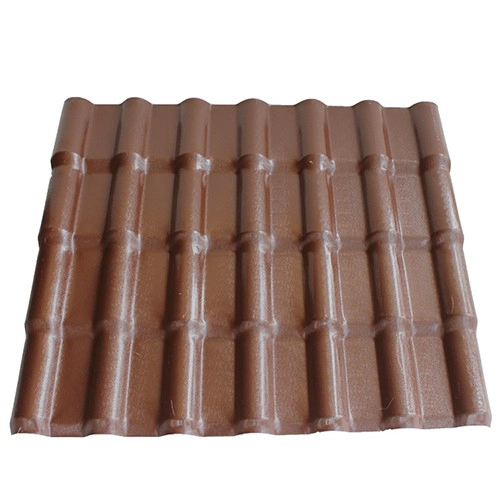

Heat Resistant Corrugated Plastic ASA PVC Roofing Manufacturer
- الاسم: ZXC المموج ASA PVC ورقة التسقيف / مقاومة للحرارة المموج سقف بلاط السقف
- الحجم: 1500 * 960mm
- سمك: 2.3 مم ~ 3.0mm
- اللون: customerized.
zxc heat resistant corrugated Custom ASA PVC Roofing Sheet

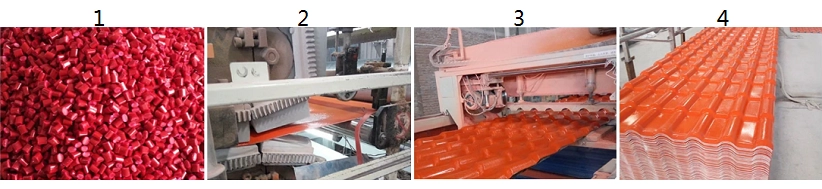

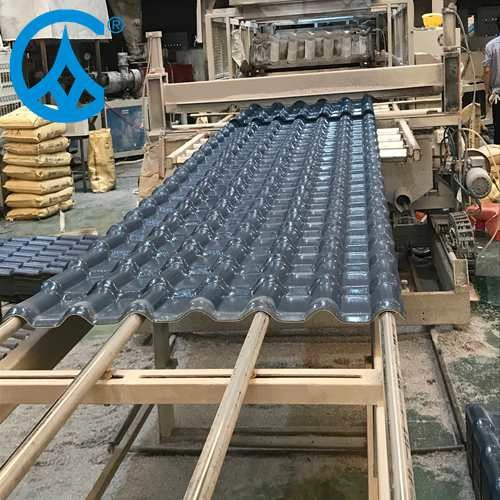

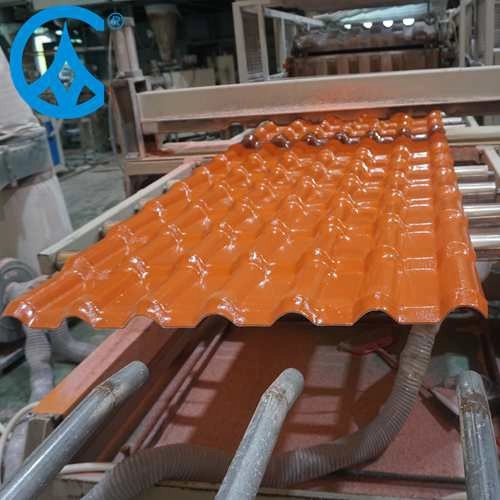

1.A variety of raw materials by a certain percentage mixing, intohe hopper
2. The mixed raw materials are pref -ormed and heated to become flat tiles
3. Then through the mold pressure,lastic the molding, cooling, throughthe traction machine slowly introduced
4.To achieve the length of customerneeds cut off. after artificial out

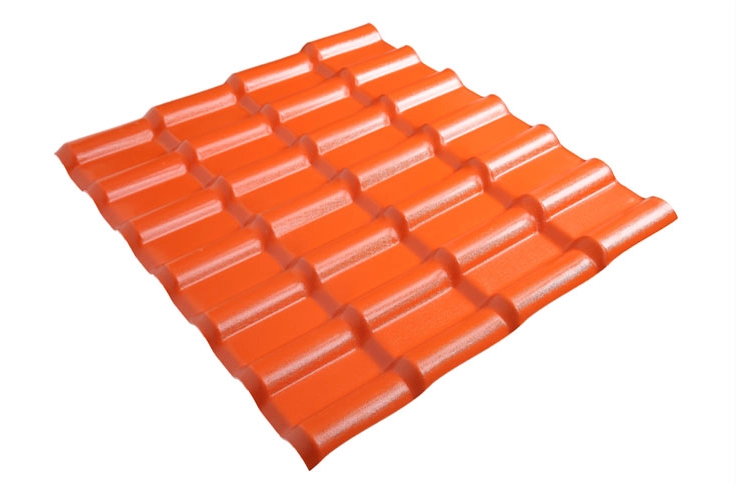

اسم المنتج | Spanish Style ASA Roof Tile |
ماركة | ZXC |
مكان المنشأ | Foshan city,Guangdong province,China(Mainland) |
مادة |
Acrylonitrile Styrene acrylate copolymer,Polyvinyl chloride, Calcium powder,other chemical materials |
يضمن | 25 سنة |
شهادة | ISO9001 / SGS / CE |
أقل كمية ممكن طلبها | 100 square meter |
موعد التسليم | 1x20GP for 6 days,1x40GP for 7 days |
قدرة العرض | We have 8 produce lines,about 13500 square meter every day |
شروط الدفع |
T/T , firstly pay 30% deposit,before loading container pay rest of payment |
شحن | Full Container Load (FCL) Service,We do it by myself. Less than Container Load (LCL) Service,We find our agents to do it. |
صفقة | Pallet or PE bag |
ميناء | Guangzhou / Shenzhen / Foshan |

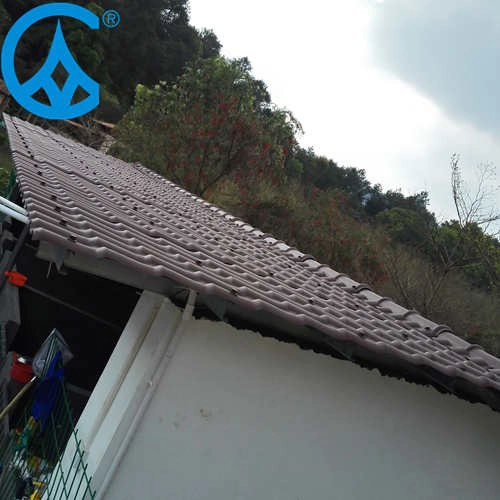

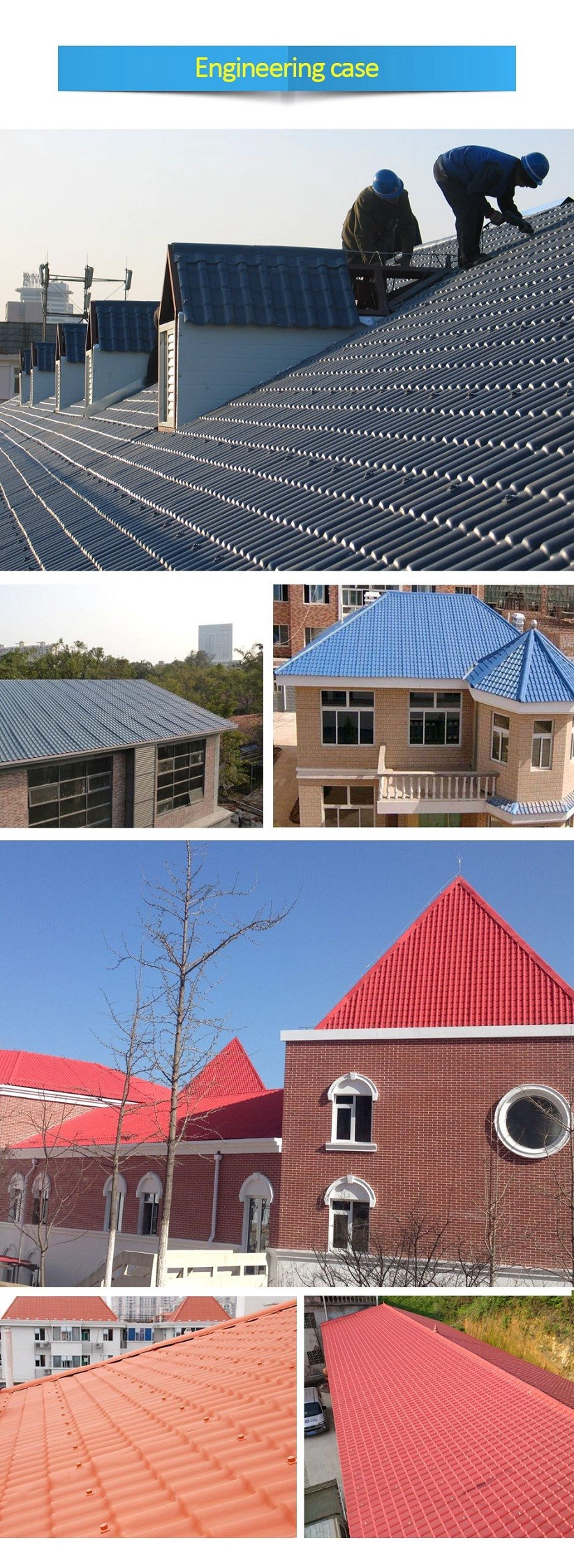

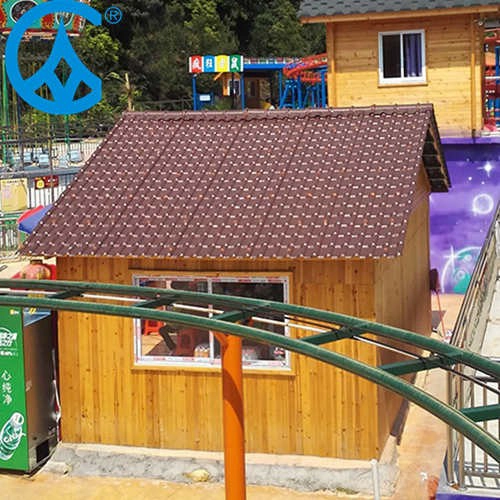

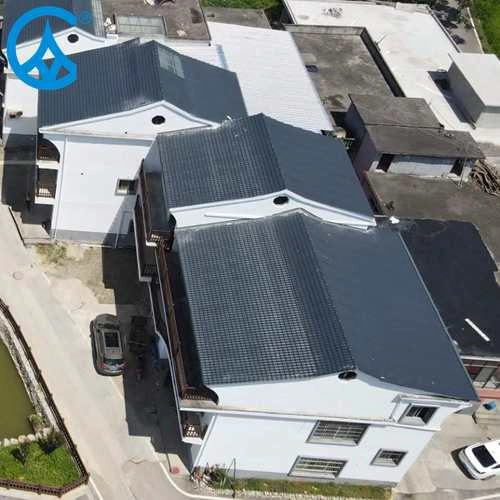

تطبيق | Villa roofing,House roofing,Garden,Grange,Container house, Flat to Slope Project,Etc |
رقم الموديل | #1050-160-30 |
اكتب | Spanish Style |

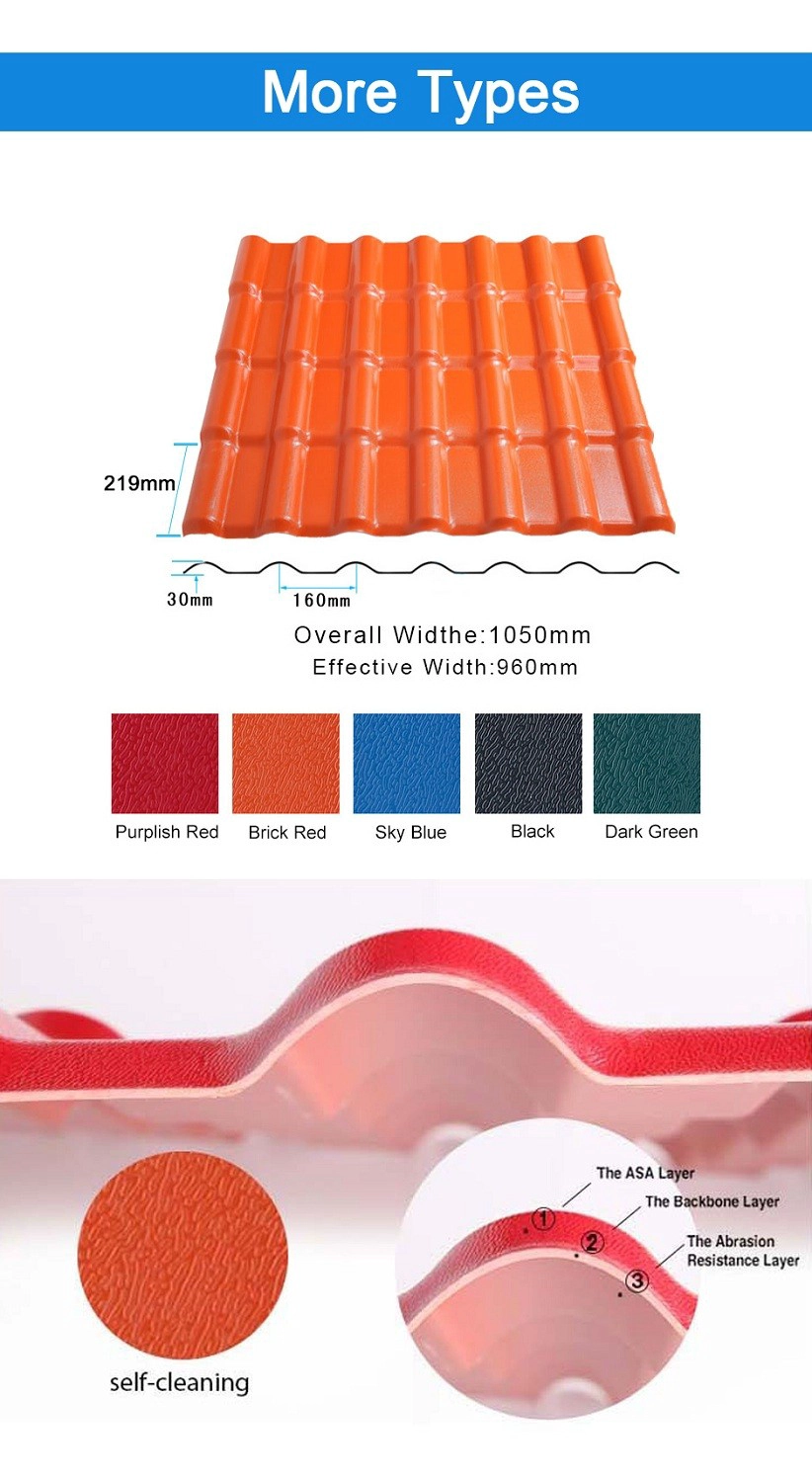

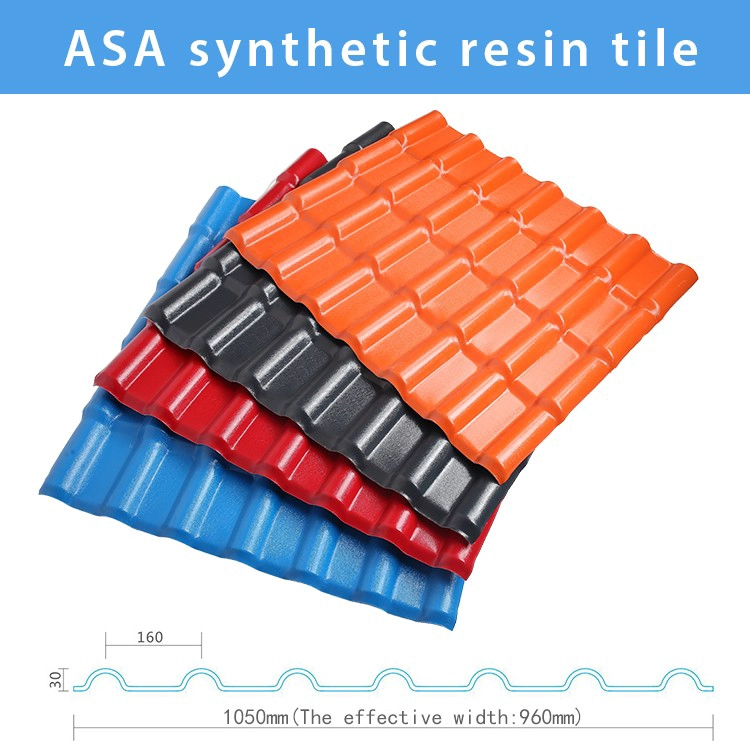

العرض الكلي | 1050mm |
Effective Width | 960mm |
سماكة | 2.3mm / 2.5mm / 2.8mm / 3.0mm |
طول | يجب أن يكون مضاعفات الجزء |

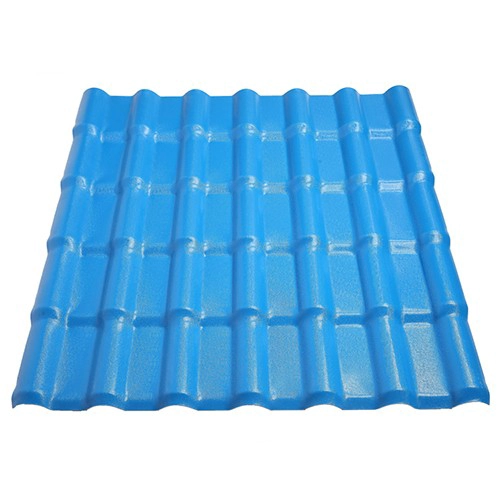

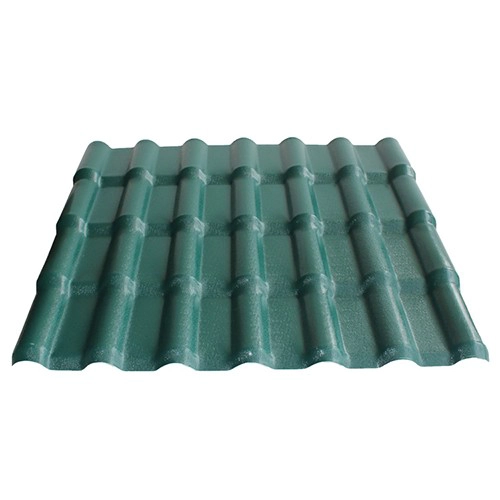

اللون | Orange / Red / Grey / Sky blue / Dark green/حسب الطلب |
Wave Spacing | 160mm |
ارتفاع الموجة | 30mm |
Section Length | 219mm |
Purlin Spacing | 660mm |

Surface:Imported ASA raw materials from the world's top 500 GE company,Super weather resistance, truly 10 years don,t have color fading.The standard is that the thickness of the surface reaches 0.15mm,We can reach 0.15-0.18mm.
Medium:The material is Polyvinyl chloride and Calcium powder,the proportion is 1:1.This is the best ratio after many trials.This ratio guarantees the strength and toughness of the product.
Bottom:The important material also is Polyvinyl chloride and Calcium powder,but add other chemical materials.We are make the same color as the surface color and white color.Gloss of products is best in the industry.
ميزة
· Long-lasting Color (at least 10 years)
· The product features ultra durability in natural environment.Even under tough conditions of exposure to UV,high temperature and freezing coldness,it still keeps stable color.
· Excllent Anti-corrosion performance
· Synthetic Resin Tile can resist longterm acid ,alkali and salt corrosion ,etc.Tests have proved that there would be no chemical reaction after soaking in salt and alikali and various acid under 60% .It is ideal for application in areas where acid rain is مشترك.
· Good Waterproofing Performance
· Synthetic Resin Tile selects highly weater-resistant resin,which is dense and absorbing no water,with no pore penetration problem.The product is 45% wider than traditional tiles with less roof contact,so synthetic resin,s waterproof performance has greatly increased than traditional tiles.
· Strong Fire Resistance
· Belonging flame retardant material,with fire resistance ≥ B1 as tested by national authoritative departments according to GBB8624-2006 standard.
· Excellent Heat Insulating Property
· The heat conductivity coefficient is 0.325w/m.k,about 1/300 of clay tile ,1/50 of cement tile,and 1/2000 of thick color steel tile.Therefore without condidering ading heat-preserving layer ,the heat insulation and heat preservation of synthetic resin tile can still be optimized.
· Good sound insulation
· Tests have proved that synthetic resin tiles have excellent noise absorption function when suffered heavy rains and strong winds.





سماكة | 2.3mm | 2.5mm | 2.8mm | 3.0mm | |
وزن (kg/SQM) |
4.6 | 5.0 | 5.6 | 6.0 | |
Container Load Capacity | 20. GP (21Tons) |
4500 | 4200 | 3750 | 3500 |
40.GP (26 Tonsفي |
5600 | 5200 | 4600 | 4300 |
ميزة:
1. Excllent Anti-corrosionأداء
2.Goodضد للماءأداء
3.Fireمقاومة
4.Heatعازلة
5.Soundايون ulation
6. weather.ثبات،شيخوخةمقاومة
صفقة:ناقصأواساسييصدرصفقة
*هل أنت منتج أو تاجر؟

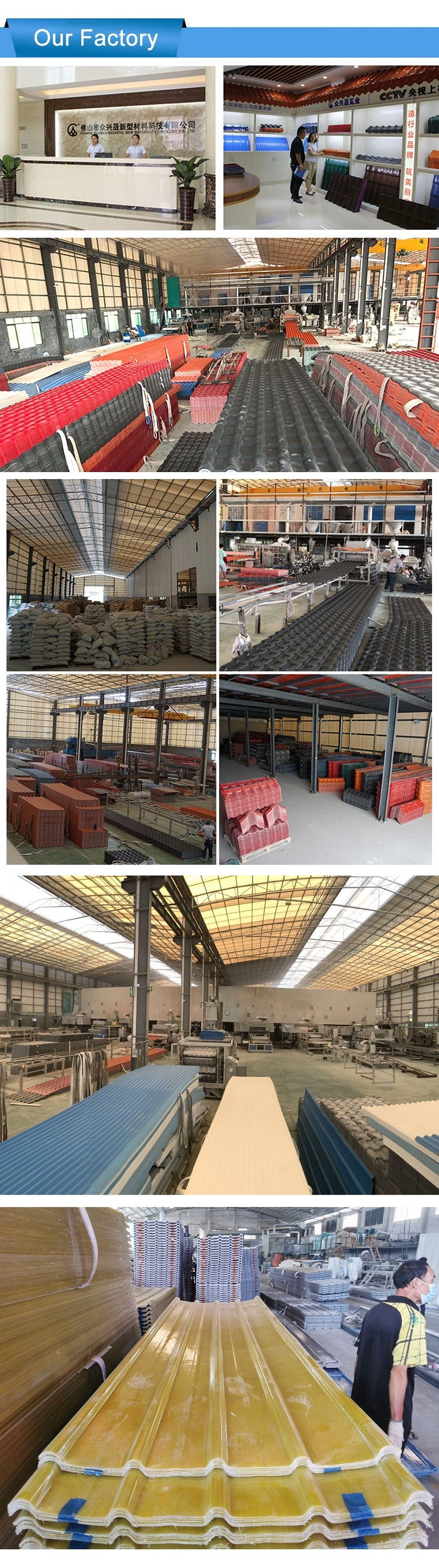

*نعم، نحن حقيقيون (آسا PVC تسقيف الصانع الصين)، هناك العديد من الصور في مقدمة شركتنا.إذا كنت بحاجة إلى منتج خاص آخر، فسوف نبذل قصارى جهدنا لمساعدتك، حتى نتمكن من بناء علاقة تجارية طويلة الأجل.
*هل يمكنني طلب المنتج مع أريد ملف تعريف؟
*بالطبع يمكنك، كما سننتج المنتجات وفقا لطلبات التفاصيل الخاصة بك.
*يمكنك وضع العلامة التجارية لشركتي على منتجاتك؟
*نعم، نحن نقبل خدمة OEM وأوديإم. لكننا نحتاج إلى بعض المعلومات حول شركتك.

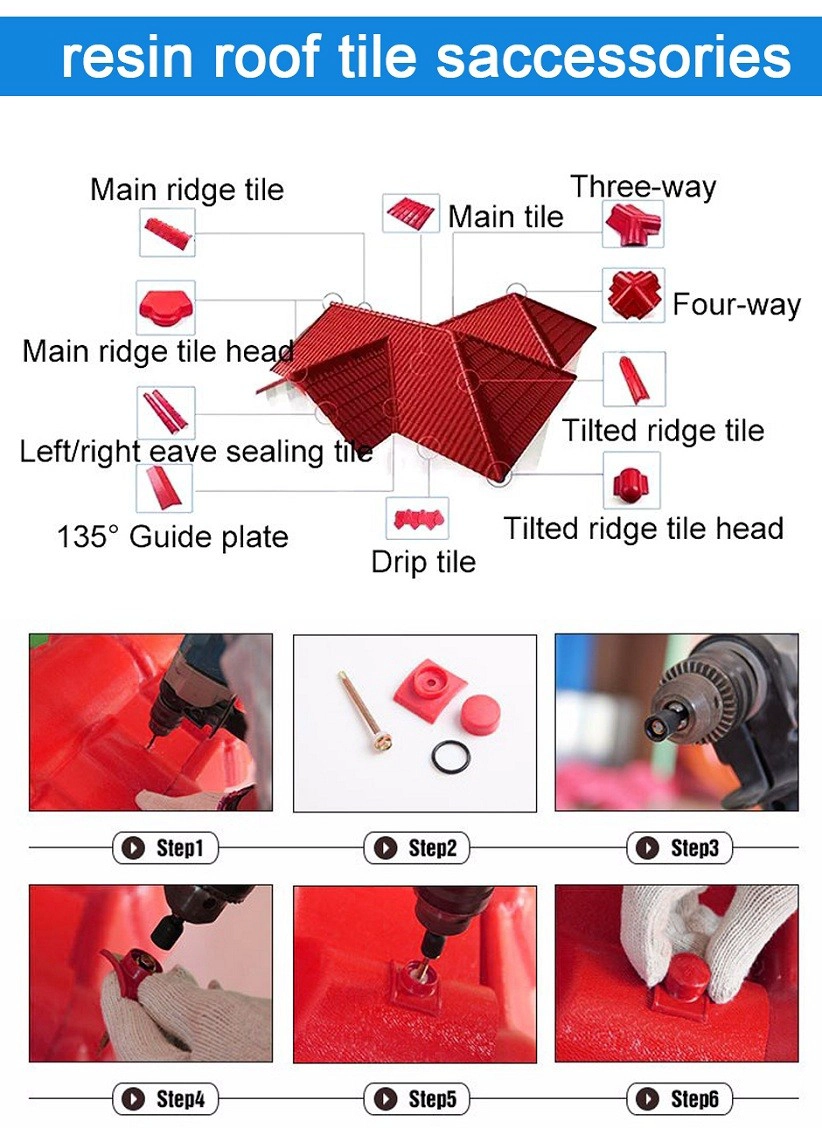

*كيفية تثبيت ورقة التسقيف؟
*يرجى الاتصال موظفي الخدمة لدينا، لدينا فيديو التثبيت بالنسبة لكوبعد
*هل يمكنك تقديم عينات لي لفتح السوق واختبارها جودة؟
*نعم، يمكننا. يمكننا تقديم عينات مجانية لك، هل يمكن أن تدفع تكلفة الشحن؟ يرجى الاتصال موظفي الخدمة لدينا.
*ما هو مصطلحك التجاري؟
* الدفع: T / T 30٪ مقدما، والتوازن قبل الشحن.
• مهلة الإنتاج: في غضون 7 أيام عمل بعد إيداع 30٪
• فوب ميناء الشحن: فوشان، قوانغتشو، شنتشن
