ZXC ASA pvc plastic roofing sheetZXC ASA pvc plastic roofing sheetZXC ASA pvc plastic roofing sheetZXC ASA pvc plastic roofing sheet

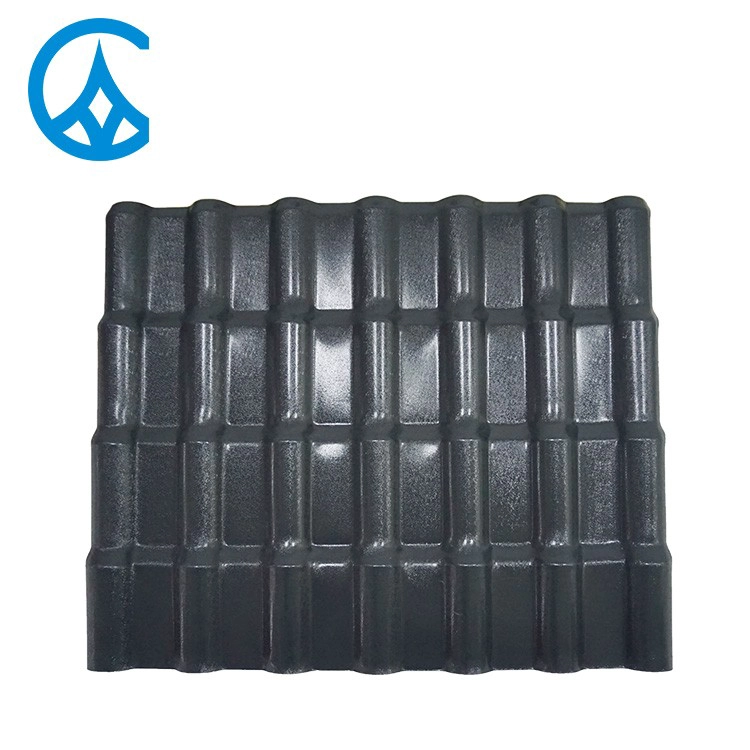

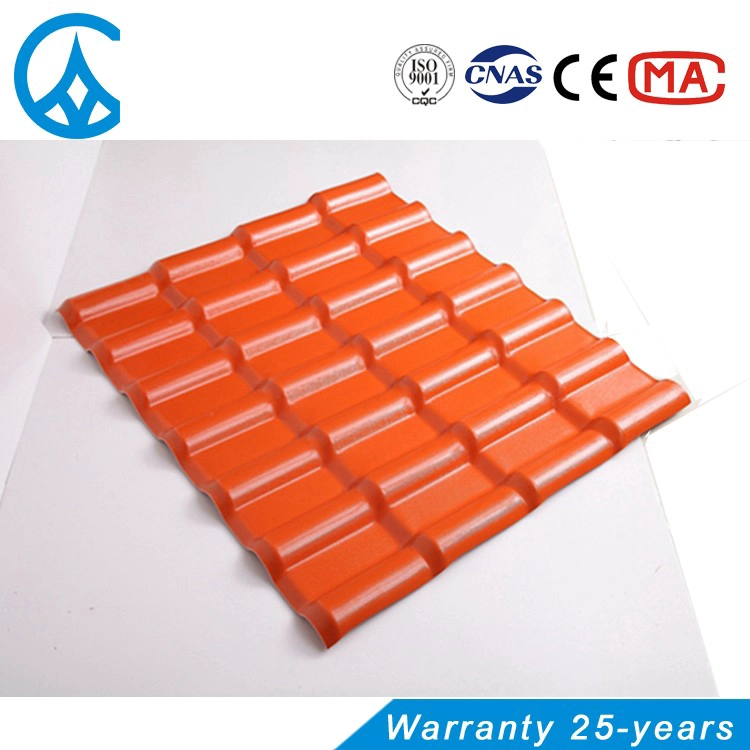

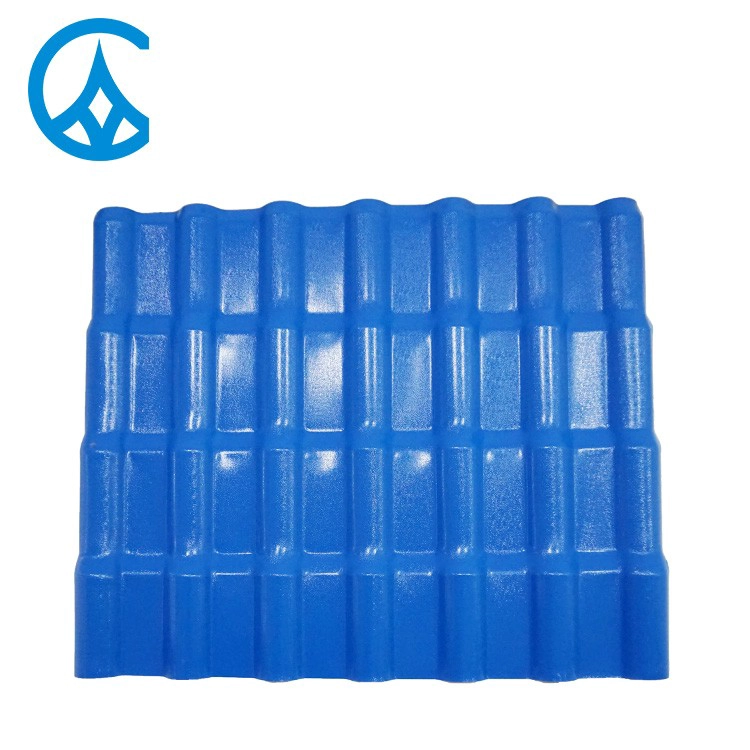

ZXC ASA pvc plastic roofing sheet

  • ชื่อ: แผ่นหลังคาพลาสติก ASA PVC
  • ขนาด: 1500*960 มม.
  • ความหนา: 2.3 มม. ~ 3.0 มม.
  • สี: ลูกค้า

1.A variety of raw materials by a certain percentage mixing, intohe hopper

2. The mixed raw materials are pref -ormed and heated to become flat tiles

3. Then through the mold pressure,lastic the molding, cooling, throughthe traction machine slowly introduced

4.To achieve the length of customerneeds cut off. after artificial out

ชื่อผลิตภัณฑ์

Spanish Style ASA Roof Tile

ยี่ห้อ

ZXC

สถานที่กำเนิด

Foshan city,Guangdong province,China(Mainland)

วัสดุ

Acrylonitrile Styrene acrylate copolymer,Polyvinyl chloride,

Calcium powder,other chemical materials

รับประกัน

25 years

Certification

ISO9001 / SGS / CE

Minimum Order Quantity

100 square meter

Delivery Time

1x20GP for 6 days,1x40GP for 7 days

Supply Ability

We have 8 produce lines,about 13500 square meter every day

เงื่อนไขการชำระเงิน

T/T , firstly pay 30% deposit,before loading container pay rest of payment

L/C ,

การส่งสินค้า

Full Container Load (FCL) Service,We do it by myself.

Less than Container Load (LCL) Service,We find our agents to do it.

บรรจุุภัณฑ์

Pallet or PE bag

ท่าเรือ

Guangzhou / Shenzhen / Foshan

แอปพลิเคชัน

Villa roofing,House roofing,Garden,Grange,Container house,

Flat to Slope Project,Etc

Model Number

#1050-160-30

พิมพ์

Spanish Style

Overall Width

1050mm

Effective Width

960mm

ความหนา

2.3mm / 2.5mm / 2.8mm / 3.0mm

ความยาว

Must be a multiple of ส่วน

สี

Orange / Red / Grey / Sky blue / Dark green

Wave Spacing

160mm

Wave Height

30mm

Section Length

219mm

โครงสร้าง

Surface:Imported ASA raw materials from the world's top 500 GE company,Super weather resistance, truly 10 years don,t have color fading.The standard is that the thickness of the surface reaches 0.15mm,We can reach 0.15-0.18mm.

Medium:The material is Polyvinyl chloride และ Calcium powder,the proportion is 1:1.This is the best ratio after many trials.This ratio guarantees the strength and toughness of the product.

Bottom:The important material also is Polyvinyl chloride และ Calcium powder,but add other chemical materials.We are make the same color as the surface color and white color.Gloss of products is best in the industry.

คุณสมบัติ

· คงอยู่เป็นเวลานาน สี (ที่ น้อยที่สุด 10 ปีที่)

· The product features ultra durability in natural environment.Even under tough conditions of exposure to UV,high temperature and freezing coldness,it still keeps stable color.

· Excllent Anti-corrosion performance

· Synthetic Resin Tile can resist longterm acid ,alkali and salt corrosion ,etc.Tests have proved that there would be no chemical reaction after soaking in salt and alikali and various acid under 60% .It is ideal for application in areas where acid rain is common.

· Good Waterproofing Performance

· Synthetic Resin Tile selects highly weater-resistant resin,which is dense and absorbing no water,with no pore penetration problem.The product is 45% wider than traditional tiles with less roof contact,so synthetic resin,s waterproof performance has greatly increased than traditional tiles.

· Strong Fire Resistance

· Belonging flame retardant material,with fire resistance B1 as tested by national authoritative departments according to GBB8624-2006 standard.

· Excellent Heat Insulating Property

· The heat conductivity coefficient is 0.325w/m.k,about 1/300 of clay tile ,1/50 of cement tile,and 1/2000 of thick color steel tile.Therefore without condidering ading heat-preserving layer ,the heat insulation and heat preservation of synthetic resin tile can still be optimized.

· Good sound insulation

· Tests have proved that synthetic resin tiles have excellent noise absorption function when suffered heavy rains and strong winds.

*Are you manufacturer or trader?

*Yes, we are real manufacturer, there are many pictures in our company introduction .if you need other special product, we will do our best to help you, so we can build a long-term business relationship.

*Can I order the product with i want to profile?

*Of course you can, also we will produce the products according to your detail requests.

*Can you put my company's brand on your products?

* ใช่เรายอมรับบริการ OEM & ODM แต่เราต้องการข้อมูลบางอย่างเกี่ยวกับ บริษัท ของคุณ

*จะติดตั้งแผ่นหลังคาได้อย่างไร?

*กรุณาติดต่อเจ้าหน้าที่บริการของเราเรามีวิดีโอการติดตั้งสำหรับคุณ.

*คุณสามารถให้ตัวอย่างให้ฉันเปิดตลาดและทดสอบได้ไหม คุณภาพ?

*ใช่เราทำได้เราสามารถให้ตัวอย่างฟรีแก่คุณคุณสามารถจ่ายค่าจัดส่งได้หรือไม่โปรดติดต่อเจ้าหน้าที่บริการของเรา

*ระยะเวลาการค้าของคุณคืออะไร?

* การชำระเงิน: T/T 30% ล่วงหน้ายอดคงเหลือก่อนจัดส่ง

•เวลารอคอยการผลิต: ภายใน 7 วันทำการหลังจากเงินฝาก 30%

• FOB Shipping Port: Foshan, กวางโจว, เซินเจิ้น
